Gear Pumps of the Silencer LD Series
Extending the success of the Silencer Series to even lower cost applications for laser cooling or sterilization technology

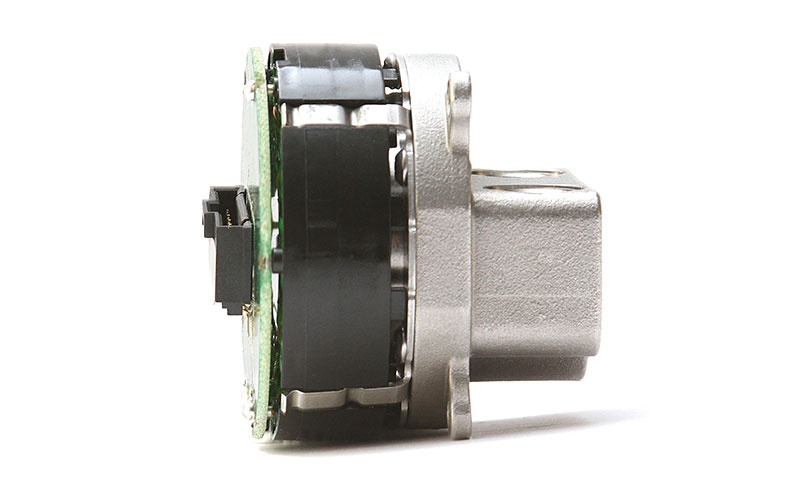

Silencer LD extends the successful Silencer series to even lower cost applications. This new deviation maintains the inexpensive, maintenance-free motor system while taking advantage of manufacturing technologies to reduce cost and size.
A redesign of the bearings allows for significant cost savings while still providing the life that Silencer pumps are known for at pressures up to 4 bar.

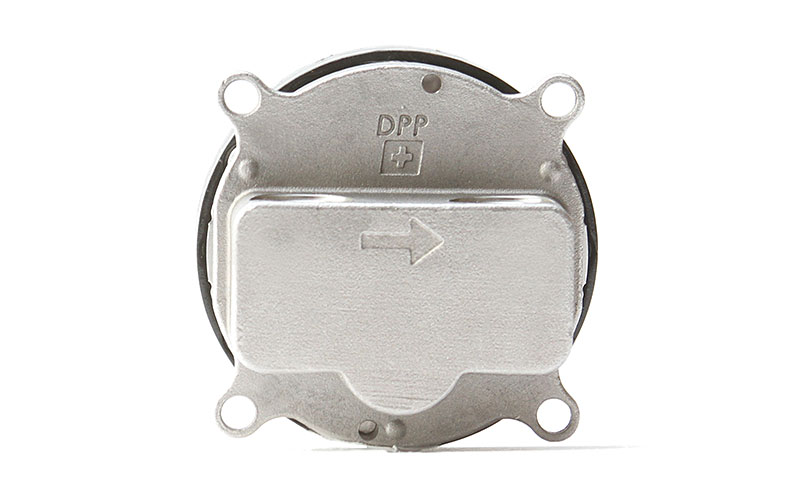

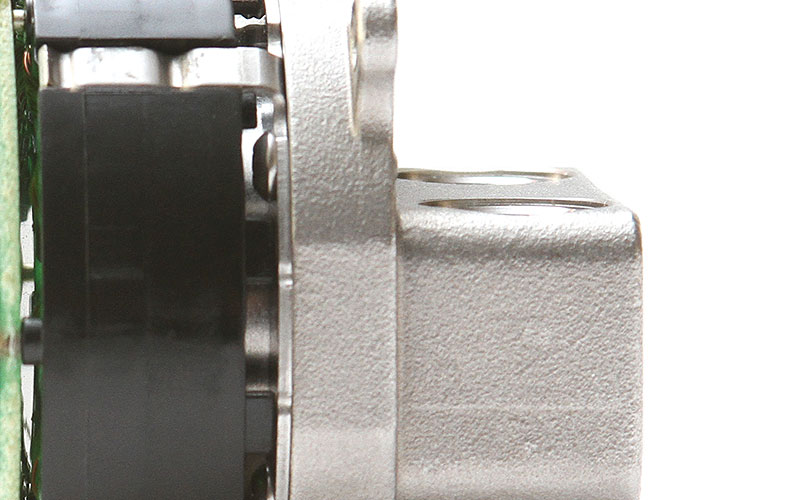

The 316L stainless steel casting allows for numerous port options at different orientations. Mounting holes are provided for easy integration into customer machines. Custom body designs can easily be provided for high volume OEM applications.
The Silencer LD pumps cover a flow rate bandwidth of 50 milliliters per minute up to 2500 milliliters per minute.
Application examples
- Sterilization
- Food
- Dialysis
- Analysis
- Diagnostics
- Laser cooling
- Consistent inkjet pressure
Pump specifications of the Silencer LD Series
The Silencer LD Series gear pumps are tailor-made to meet your requirements. Look here to view the parameters that allow adjustments to be made:
| Flow Range (ml/min) | 50 to 2500 |
| Maximum continuous Pressure (Bar) | 4 |
| Maximum Intermittent Pressure (Bar) | 5 |
| Self-Priming | Yes |
| Fluid Viscosity Range (cps) (Standard – consult factory for options) | 0.3 to 1000 |
| Motor Types | Standard BLDC / BLDC with integrated motor controller |
| Fluid Temperature (°C) | -20 to +100 |
| Standard Materials (consult factory for options) | 316L SS, PEEK, EPDM |
Download Datasheets & 3D STEP files
Do you still need more accurate information on our Silencer LD Series? Here is where you can download the data sheets and 3D STEP files for all of our models.
Datasheets Silencer LD Series (Format EU/APAC)
Datasheets Silencer LD Series (Format US)
3D STEP files Silencer LD Series
| Flow Range (ml/min) | 50 to 2500 |
| Maximum continuous Pressure (Bar) | 4 |
| Maximum Intermittent Pressure (Bar) | 5 |
| Self-Priming | Yes |
| Fluid Viscosity Range (cps) (Standard – consult factory for options) | 0.3 to 1000 |
| Motor Types | Standard BLDC / BLDC with integrated motor controller |
| Fluid Temperature (°C) | -20 to +100 |
| Standard Materials (consult factory for options) | 316L SS, PEEK, EPDM |
Datasheets Silencer LD Series (Format EU/APAC)
Datasheets Silencer LD Series (Format US)
3D STEP files Silencer LD Series
Your request
Are you interested in our Silencer LD Series? Just complete the contact form and we will get back to you with a customized quote as soon as possible. Alternatively you can fill out and send an interactive PDF document, which you can download here.
