Metering Pumps of the Dual-Precision Series
Highest precision for synchronized dosing, mixing and analysis.

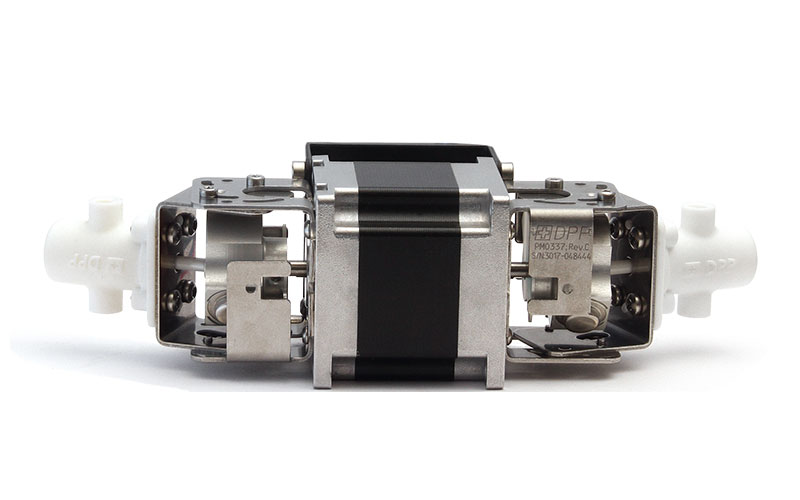

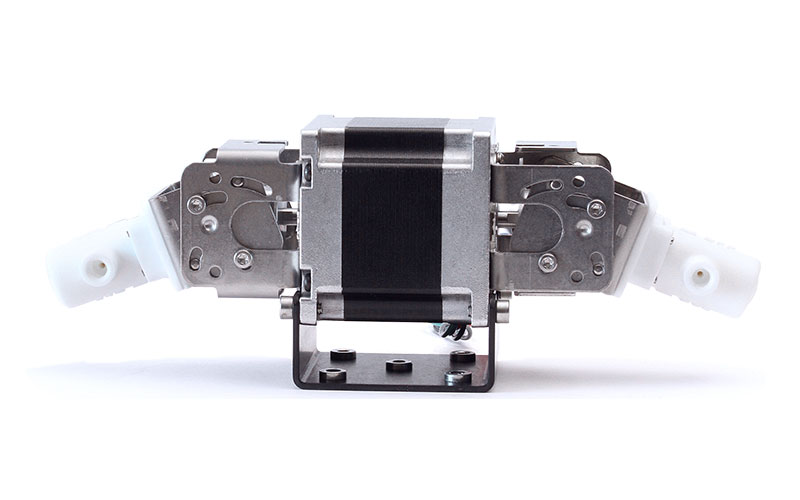

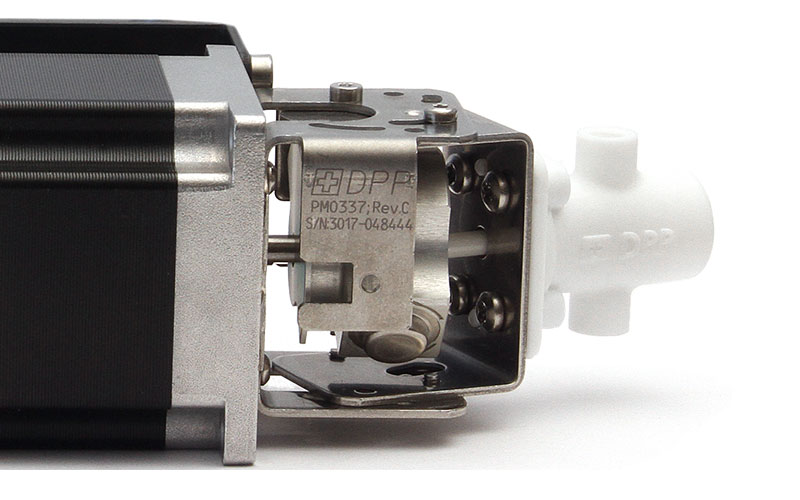

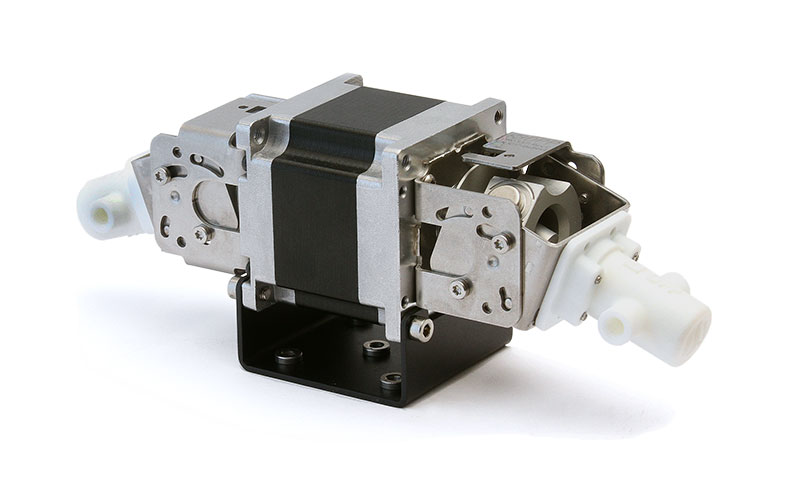

The Dual Precision Series’ innovative design allows precise mixing, simultaneous dosing or out-of-phase delivery. Combining pumps on a single motor saves space and reduces motor control requirements without sacrificing precision. Furthermore, relative dispense volumes never change because the pumps spin on the same shaft.

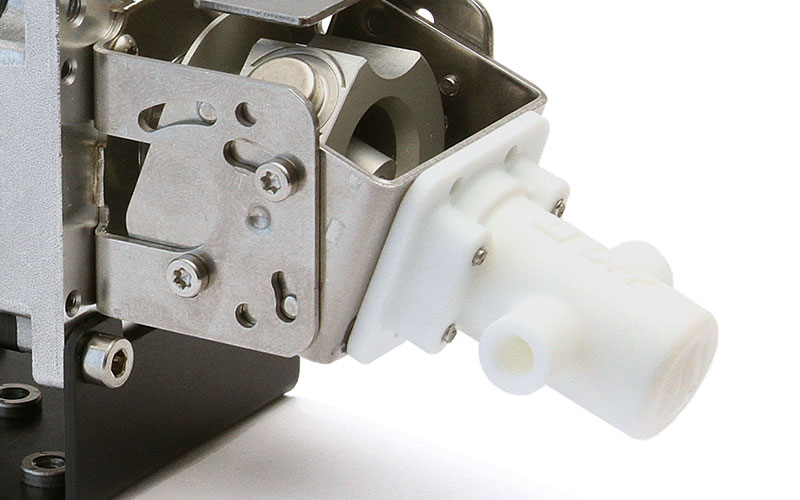

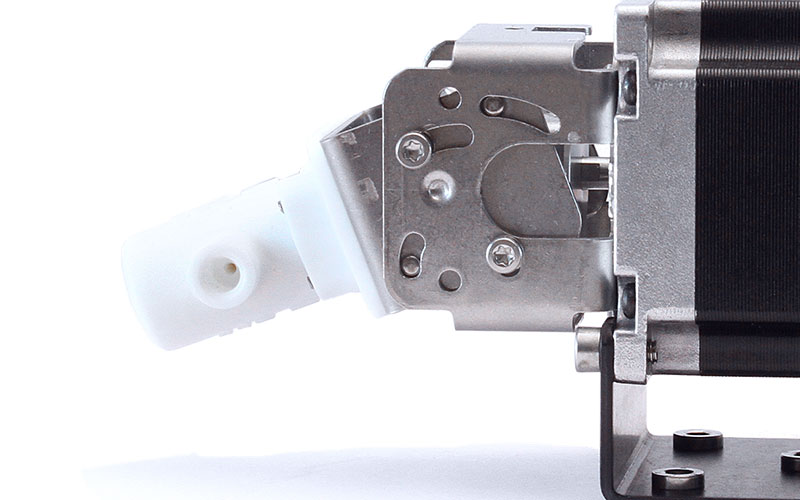

Using different size pump heads and using different calibrations allow mixing ratios as high as 160:1. Rinse port options are available when pumping fluids that form precipitates.
The speed and direction are detected by an optical sensor for feedback independent of the stepper motor.
Depending on size each pump head is capable of a displacement of 25 to 4000 µL / stroke.
Application examples
- Analysis
- Diagnostics
- Medical technology
- Precision Mixing
Pump specifications of the Dual-Precision Series
The Dual Precision Series metering pumps are tailor-made to meet your requirements. Look here to view the parameters that allow adjustments to be made:
| Pump Size (mm) |
4 |
6.34 |
9 |
12.7 |
19 |
| 4 | 4:1 | 10:1 | 21:1 | 72:1 | 160:1 |
| 6.34 | 10:1 | 4:1 | 9:1 | 30:1 | 67:1 |
| 9 | 21:1 | 9:1 | 4:1 | 15:1 | 33:1 |
| 12.7 | 72:1 | 30:1 | 15:1 | 4:1 | 10:1 |
| 19 | 160:1 | 67:1 | 33:1 | 10:1 | 4:1 |
| Pump Size, mm |
Displacement (per side), µL/stroke |
Flow Rate* (per side), ml/min |
| 4 | 24 - 100 | 0.63 - 50 |
| 6.34 | 60 - 250 | 1.5 - 125 |
| 9 | 120 - 515 | 3 - 250 |
| 12.7 | 465 - 1810 | 12 - 900 |
| 19 | 1040 - 4000 | 25 - 200 |
* Values are for 25 - 500rpm. Speed range can be expanded on a per-application basis
Download Datasheets & 3D STEP files
Do you still need more accurate information on our Dual Precision Series? Here is where you can download the data sheet and 3D STEP file.
Datasheets Dual Precision Series (Format EU/APAC)
Datasheets Dual Precision Series (Format US)
3D STEP files Dual Precision Series
| Pump Size (mm) |
4 |
6.34 |
9 |
12.7 |
19 |
| 4 | 4:1 | 10:1 | 21:1 | 72:1 | 160:1 |
| 6.34 | 10:1 | 4:1 | 9:1 | 30:1 | 67:1 |
| 9 | 21:1 | 9:1 | 4:1 | 15:1 | 33:1 |
| 12.7 | 72:1 | 30:1 | 15:1 | 4:1 | 10:1 |
| 19 | 160:1 | 67:1 | 33:1 | 10:1 | 4:1 |
| Pump Size, mm |
Displacement (per side), µL/stroke |
Flow Rate* (per side), ml/min |
| 4 | 24 - 100 | 0.63 - 50 |
| 6.34 | 60 - 250 | 1.5 - 125 |
| 9 | 120 - 515 | 3 - 250 |
| 12.7 | 465 - 1810 | 12 - 900 |
| 19 | 1040 - 4000 | 25 - 200 |
* Values are for 25 - 500rpm. Speed range can be expanded on a per-application basis
Datasheets Dual Precision Series (Format EU/APAC)
Datasheets Dual Precision Series (Format US)
3D STEP files Dual Precision Series
Your request
Are you interested in our Dual Precision Series? Just complete the contact form and we will get back to you with a customized quote as soon as possible. Alternatively you can fill out and send an interactive PDF document, which you can download here.
